Workflows

Six flows. Each one is what actually happens, drawn end to end, with the component that owns each step named.

Read the diagram first, then the notes underneath it. Between them they explain almost every "why did it do that?" you will ever have.

Overview​

Purpose​

To give you a mental index. When something misbehaves, find the flow it belongs to, walk the diagram, and the broken step will usually be obvious.

When to use this page​

  • After Core Concepts, to see the concepts in motion.
  • While debugging, to isolate which step failed.
  • Before building automation, to see what already happens for free.

Prerequisites​

Workflow 1 — Downloading a movie​

The simplest flow, and the foundation of every other one.

Notes

  • The browser never touches the engine. Everything is normalized server-side.
  • Adding by URL is fetched by the backend through an SSRF guard — a private-IP indexer must be listed in SSRF_ALLOW_HOSTS.
  • torrent.completed is edge-triggered (progress crosses 100% on a live tick) and backfilled (reconcileCompleted re-evaluates torrents already complete that never crossed that edge — finished while the app was down, or a rule created afterwards). A success ledger keeps it idempotent, so each rule runs once per torrent.

Torrents page during an active download

Workflow 2 — Automating a TV show​

You never want to think about a show again. Two mechanisms can do that, and they are complementary:

MechanismFires whenGood at
RSS ruleA new item shows up in a feed (polled every 60s)Forward acquisition — tonight's episode, minutes after it is posted.
Smart Download + Missing EpisodesA scan finds a gap between the IMDb catalogue and your libraryBackward acquisition — the 43 episodes you never had.

Use both. Together they cover the whole timeline.

Notes

  • A series is monitored once it is on the watchlist with an IMDb ID. Use the Add from library picker on the Missing Episodes page rather than typing IDs.
  • Missing-episode auto-search (autoSearchMissing) is opt-in and off by default. Manual Search now / Search all always work.
  • If the show later ends, the background status-refresh job tells you — and emits rss.show.ended — but it never disables your rule. That is your call.

Full walkthrough: Automating TV shows.

RSS rule dialog with the TV show status panel

Workflow 3 — An RSS rule fires​

This is the flow people most often misread, because of the three-level deduplication.

Notes

  • Level 3 is the one that surprises people. A rule with a preference list holds exactly one release per logical title (movie:<title>:<year> or ep:<title>:<season>:<episode>). It grabs the best available, upgrades when something strictly better appears (removing the old torrent and its data), and skips anything equal or worse.
  • If a release title cannot be parsed into a release identity, level 3 falls back to plain per-release behavior.
  • All three levels are enforced in both live polling and backfill.
  • Auto-download off turns the rule into a recorder: matches are logged, nothing is grabbed. That is also what the convert_rule_to_backfill automation action does.

Full walkthrough: Smart RSS rules.

Smart Match Builder with a ranked preference list

Workflow 4 — Smart Download acquires a missing episode​

Detection and downloading are two separate halves. Indexer search is the bridge.

Notes

  • searchStatus walks idle → searching → grabbed | pending_approval | no_results | failed and is preserved across rescans (like your ignored overrides), so a grabbed episode is never re-searched. It clears once the episode is owned.
  • Duplicate-grab safety is layered: searchStatus excludes grabbed/pending rows · a lastSearchedAt backoff · a re-entrancy guard on the sweep · cross-indexer dedup by info-hash · and the evaluator's own owned check.
  • A candidate only matches when its scene title parses to the show name. A show known by a different alias may be skipped rather than mis-grabbed.
Limits worth knowing

Automatic search is episode-only today — WantedMovie rows carry the same grab-state columns, but there is no automatic movie search yet. Smart Download's automation triggers are also not wired yet, and replace_existing exists as a decision type but is not emitted.

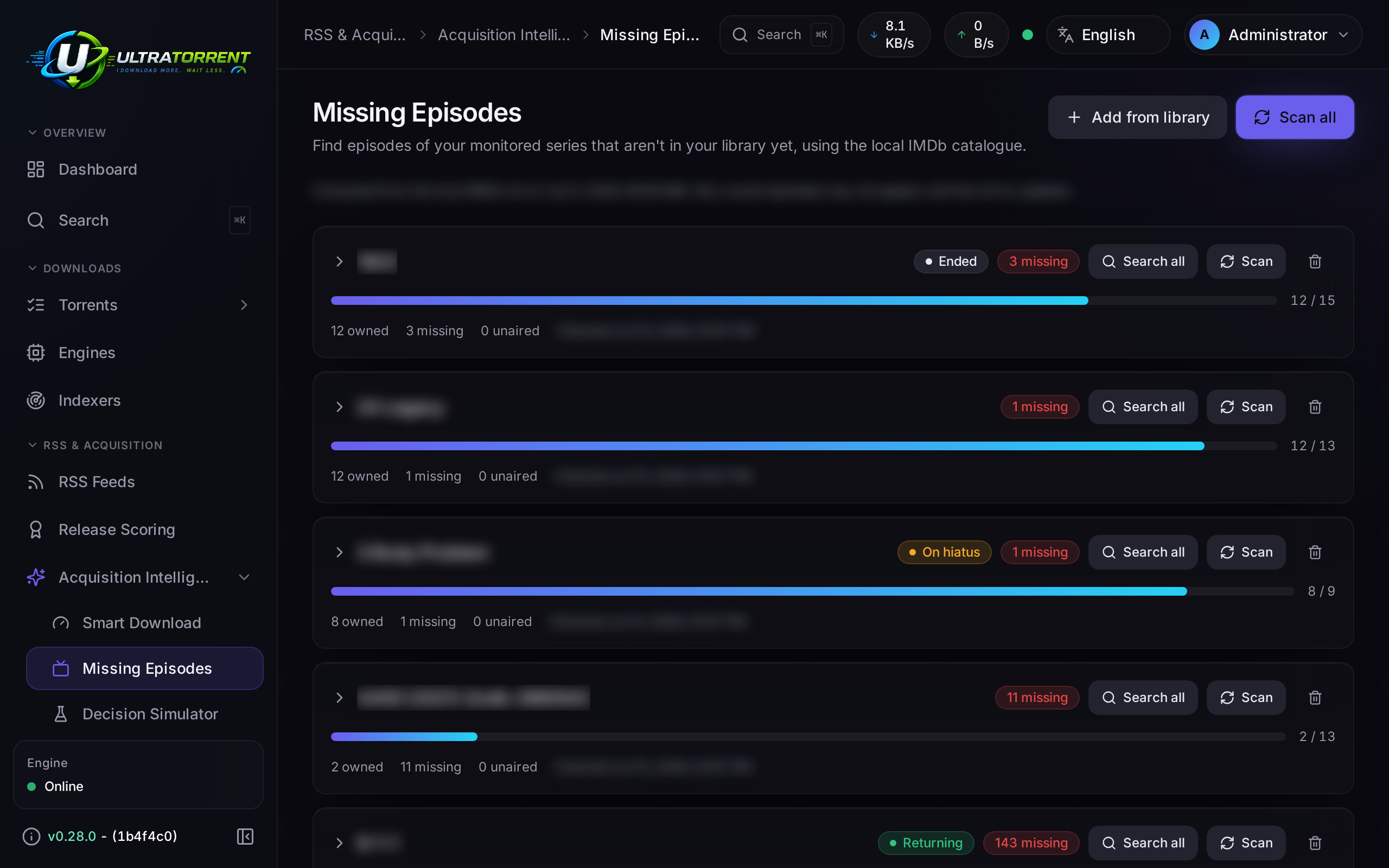

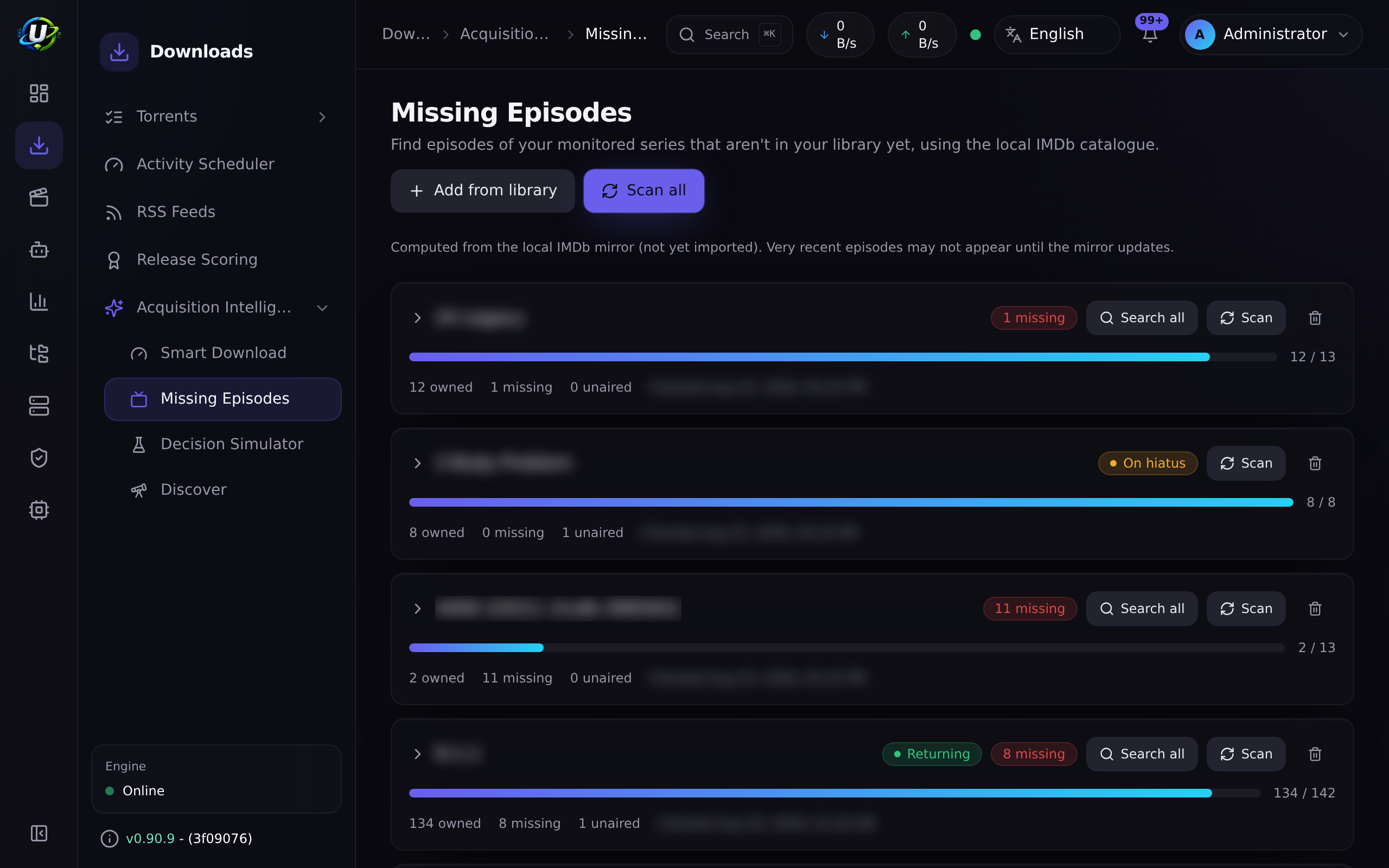

Missing Episodes page with the season and episode grid

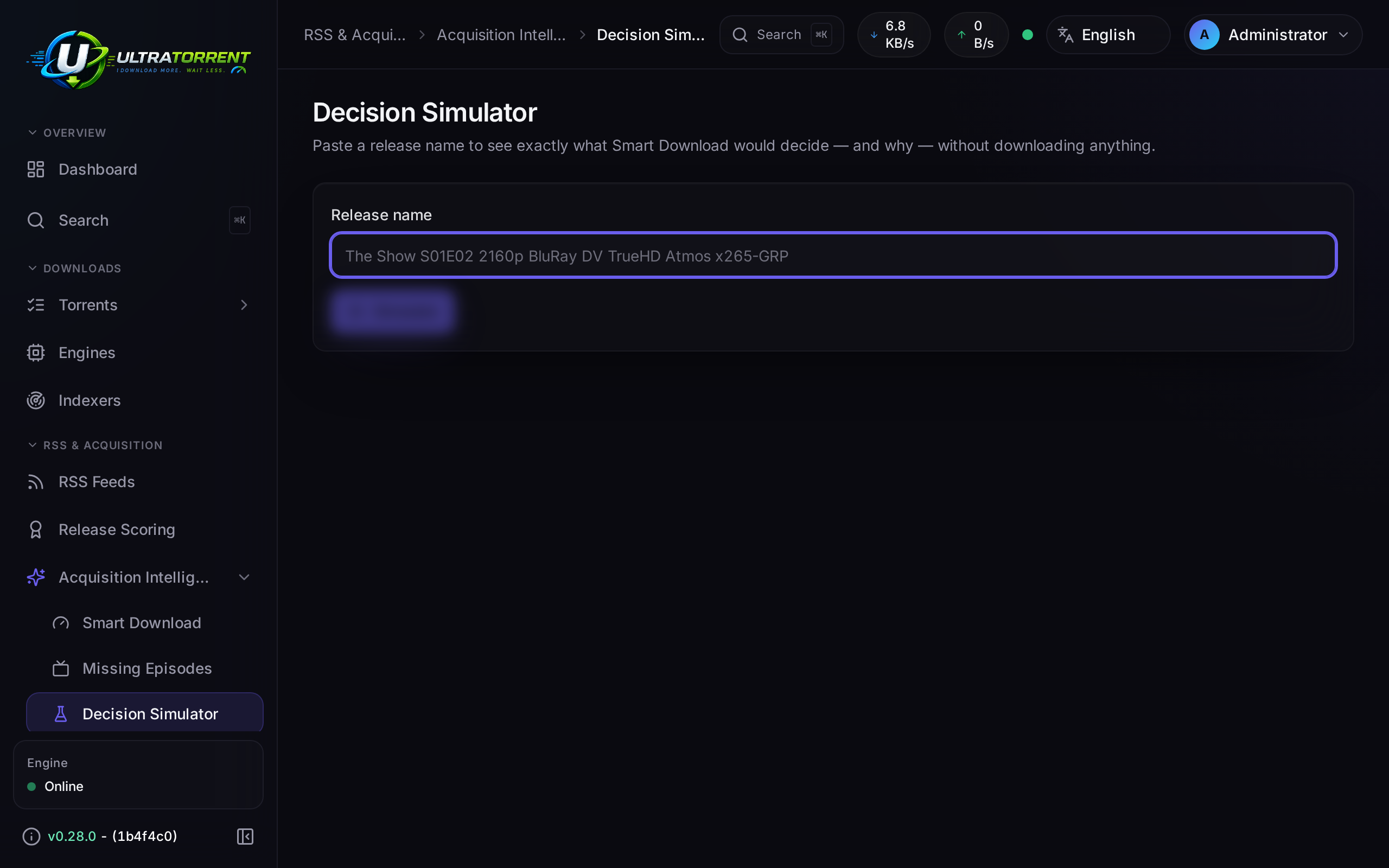

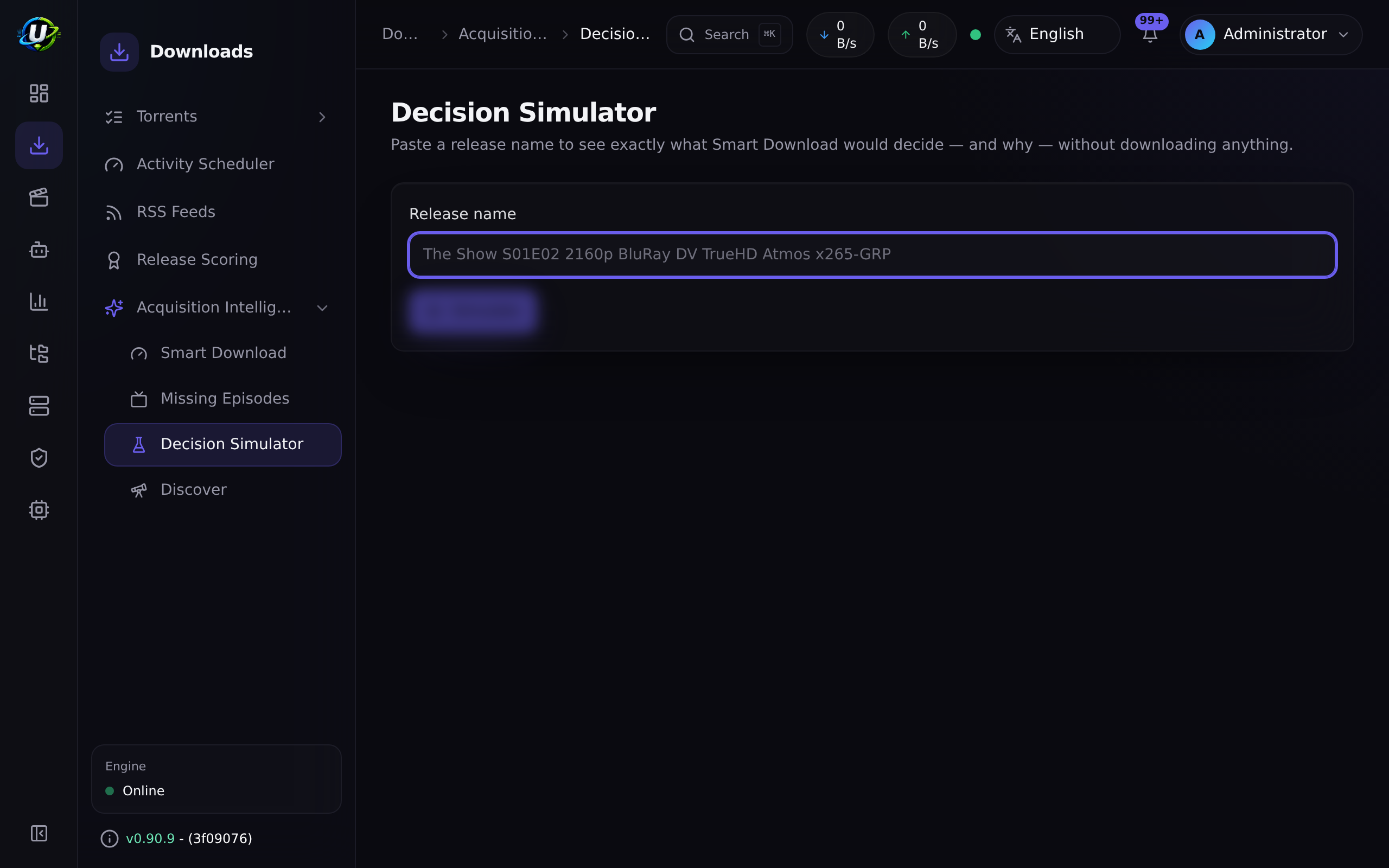

Decision Simulator showing the explainable pipeline

Workflow 5 — Media import and rename​

What turns "a download" into "a library".

Notes

  • Each stage is isolated. A failure in one never aborts the rest, and the handler never throws (which protects the engine sync loop).
  • The library's kind (tv/anime/movie) is authoritative over the filename for the movie/tv/anime axis. A folder like 9-1-1 (2018) in a tv library is not mis-read as a movie. Only general libraries guess from filenames.
  • For episodic layouts (Show/Season NN/episode), the series title comes from the show folder, not the filename — which is what stops a show fragmenting into one item per episode.
  • Every dotted arrow is a real automation trigger you can hang your own rules on.

There is also a periodic scan — and it behaves differently​

That is deliberate: a routine scan enriches in place. Renaming stays the download organiser's job. Only gaps are filled, so steady-state scans do almost no work and never re-hammer the metadata providers.

Media dashboard showing library health

Workflow 6 — Backup and restore​

The least exciting workflow and the only one whose absence will ruin your week.

Back up​

# The database — this is the one that matters.
docker compose exec -T postgres \
  pg_dump -U ultratorrent ultratorrent > backup-$(date +%F).sql

# The secrets. Without ENCRYPTION_KEY the dump's encrypted columns are unreadable.
cp .env env-backup-$(date +%F)
ENCRYPTION_KEY and the database are one unit

ENCRYPTION_KEY is what decrypts the encrypted columns in that dump — 2FA/TOTP secrets, indexer API keys and media-server tokens. A database restored without its matching key has a lot of unreadable secrets in it. Back them up together, restore them together, and store them somewhere that is not the host you are backing up.

Restore​

  1. Bring up a stack with the same .env (same ENCRYPTION_KEY, same POSTGRES_PASSWORD).
  2. Restore the dump into the fresh database.
  3. Start the backend. It runs prisma migrate deploy on boot.
  4. Verify, in this order: log in → engines connect → an indexer Test still passes (that proves the encrypted keys decrypted correctly).
Migrations are forward-only

If an upgrade goes wrong, you restore the pre-upgrade backup — you do not roll a migration back. Take the backup before you upgrade, every time. See Upgrading.

Full procedure, including scheduling and retention: Backup & restore.

Watch this tutorial

Video coming soon.

Examples​

Which workflow owns my problem?​

SymptomWorkflowStart looking at
Torrent stuck at 0%1Engine, tracker, peers
New episodes never grabbed2, 3Rule regex, feed interval, show status
The same episode grabbed twice3Release identity parsing (level-3 dedup)
An old episode never fills in4Watchlist IMDb ID, indexer results, autoSearchMissing
Files downloaded but never renamed5Library root vs. save path; library enabled?
I lost everything6You did take a backup, right?

Troubleshooting​

SymptomLikely workflow stepFix
Rule matches but never grabsWorkflow 3, dedup level 3You already hold an equal-or-better release for that logical title. Check the rule's acquisitions.
Rule grabs then immediately removesWorkflow 3That is an upgrade — a strictly higher-priority release appeared and superseded the old one. Working as designed.
Missing episode search finds nothingWorkflow 4The show's scene title does not parse to your watchlist title (an alias), or no indexer carries it.
Everything is pending_approvalWorkflow 4Your acquisition profile has approvalRequired, or the score is below approvalScore.
Media stays unmatchedWorkflow 5Poor release name. Fix on /media/unmatched, or improve the source naming.
Restored DB, but indexers all failWorkflow 6Wrong ENCRYPTION_KEY. The encrypted keys cannot be decrypted.

Tips​

Read the trace, do not guess

Every Smart Download decision persists its full trace. The Decision Simulator (/media-acquisition/simulator) replays the whole pipeline for any release name with zero side effects. It will tell you exactly why something was chosen or rejected in less time than it takes to form a theory.

Everything mutating is audited

Actor, IP, user agent and result, on Administration → Audit Log (/audit). Including the show-status override on an ended series.

FAQ​

Do RSS rules and Smart Download fight each other? No — they share the same brains. Smart Download consumes the RSS module's Smart Match preference lists and the Release Scoring engine as the source of truth. It orchestrates; it does not re-implement quality preferences.

Why did an RSS upgrade delete my torrent? Because it superseded it. Level-3 dedup holds one release per logical title: when a strictly higher-priority release appears, it grabs the new one and removes the old torrent and its data. If you do not want that, do not rank the better release above the one you have.

Can I run the media pipeline on files I did not download? Yes — that is what the periodic library scan is for. It enriches externally dropped folders in place. But note it never renames or moves, and fires no media.* triggers.

What is the smallest useful backup? pg_dump + your .env. Everything else is re-downloadable.

Checklist​

  • I can name the event that starts the media pipeline (torrent.completed).
  • I can name the three levels of RSS deduplication.
  • I know that missing-episode auto-search is opt-in and off by default.
  • I know that the periodic library scan never renames.
  • I have taken a pg_dump and backed up .env with ENCRYPTION_KEY.
  • I have restored that backup at least once, somewhere disposable, and verified an indexer Test still passes.

Expected results​

VerificationExpected
Add a torrent inside a library root, waitIt is renamed and appears in the media server.
Paste a release name into the Decision SimulatorA full, clickable trace with a decision and a reason.
Restore your backup on a clean stackYou can log in, and an indexer Test passes.

Next steps​

Pick the flow you want to own and go deep:

  1. Building a movie library → Workflow 5
  2. Automating TV shows → Workflows 2 + 4
  3. Smart RSS rules → Workflow 3
